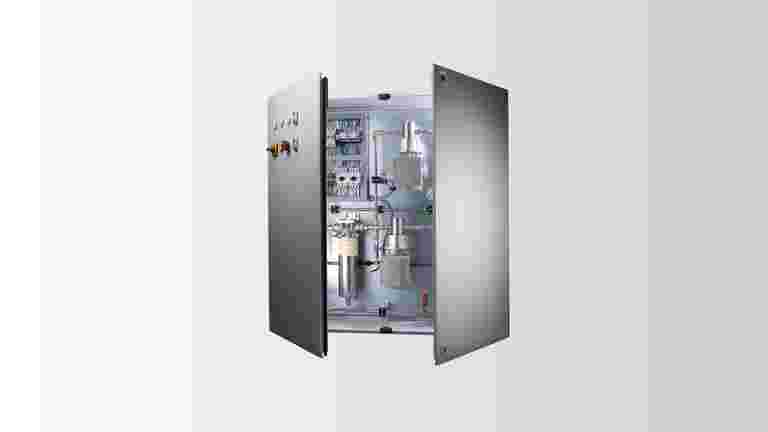

Dosing system with gear pumps Precise injection with the newest technology.
High-tech products for your
dosing system
SCHERZINGER industrial dosing systems are uniquely designed to integrate into your system. The dosing system receives the specification for the continuous injection of a certain amount of liquid via a CAN bus signal or a current interface from the superordinate system.
Our gear pump technology, tried and tested for decades, enables the dosing of the most diverse process liquids and gasses. The range includes:
- basic to acid (e.g. sodium hydroxide to acetic acid)
- aqueous to viscose (1 mPas ... 1,000 mPas)
- non-conductive to strongly conductive (10μS/cm ... 0.1 S/cm)
In these systems, the precise dosing can be achieved with various types of flow sensors or, if slightly less precision suffices, also by means of self-learning and self-adjusting algorithms. Liquid dosage ratios up to 1:100 can then be realized. If necessary, a gas flow (air / noble gas) can also be controlled with which a dual substance jet can spray the liquid to be dosed.
Technical specifications
| Dosing spread | >1:100 Dosing spread |
| Production rate | 17 ml/min … 13 l/min (across different system sizes) |
| Viscosity range | 1 … 1.000 mPas |
| Type of dosage | Continual, on request in batch |
| Triggering | CAN oder 4...20mA |
| Dimensions in mm (B x H x T) | Max. 1200 x 800 x 400 |
| Safety class | IP 54, higher if desired |
| Supply voltage | 230/400V 3~, alternativ 24V DC |
| Explosion protection | Optional |
Pump units
In accordance with customer-specific process conditions, we manufacture ready-to-use pump modules and systems.
Pump advantages
Every model excels in ease of maintenance, durability and a space-optimized design.
Performance range
Thanks to our latest technology, you can realize the precise dosing quantities from as little as ml/min to as much as m3/h with SCHERZINGER systems.
Typical SCHERZINGER …
We will gladly advise you and find individually suitable pump solutions. As a developer and manufacturer with the highest level of manufacturing penetration, we know all the relevant topics inside out and offer you absolutely reliable high-tech products in individual production as well as small-, medium- or large-series production.
Please feel free to test us extensively – we will convince you with our first-rate pump performance …
